4spn1-16p

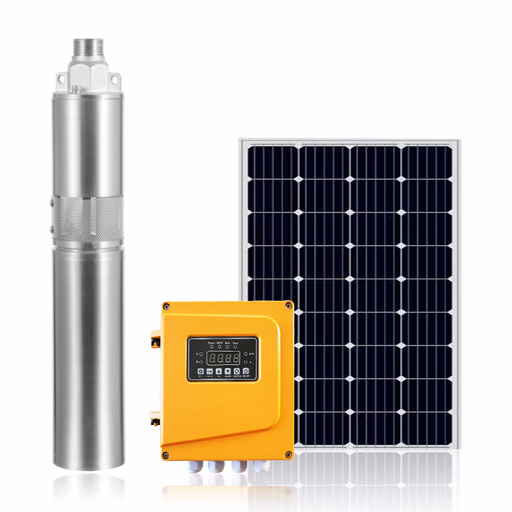

4SPN1-16P DC centrifugal submersible pump with a 2-inch outlet, designed for reliable and efficient water pumping applications. It operates on DC power with a strong 1800W (2.41HP) motor, delivering a maximum head of up to 175 meters and a maximum flow rate of 3.7 cubic meters per hour. The pump features an internal controller and is equipped with a water-filled PMSM motor, which ensures high efficiency, durability, and stable performance even in demanding conditions. Built specifically for long-term use, this 2-inch DC centrifugal submersible pump is ideal for livestock watering and other agricultural water supply needs in Zimbabwe, providing dependable operation with low maintenance requirements.
The solar water pump motor is designed for efficient and reliable performance, featuring a power rating of 1800W and constructed from durable AISI 304 stainless steel. It uses a high-efficiency BLDC motor with an encapsulated, water-filled design for enhanced cooling and long service life, supported by a robust thrust bearing system. The motor operates at a maximum DC current of 15A and is suitable for submersion depths of up to 150 meters, while handling water temperatures of up to 40°C. With an efficiency of up to 85% and insulation class F, it ensures safe and consistent operation under demanding conditions. The maximum open-circuit voltage is DC 100V, with an optimal operating voltage range of DC 40–90V. Depending on the impeller material, the motor can reach a maximum speed of 4500 RPM with plastic, 4000 RPM with SS304, and 4000 RPM with a helical configuration. It is rated IPX8 for full water submersion and requires a minimum cooling flow of 0.5 liters per second to maintain optimal performance.
